Automated, verifiable material takeoffs for construction

See how Syntraix reads engineering drawings, extracts material quantities, and maps every result back to the plans so you can review and move faster.

A real takeoff, start to finish

Upload a drawing, automatically detect materials, and review a complete takeoff mapped directly to the source plans.

1. Source drawing

2. Automated detection

3. Structured output

Source Sheet

AS405.1.pdf

Selected material sample (SMT2)

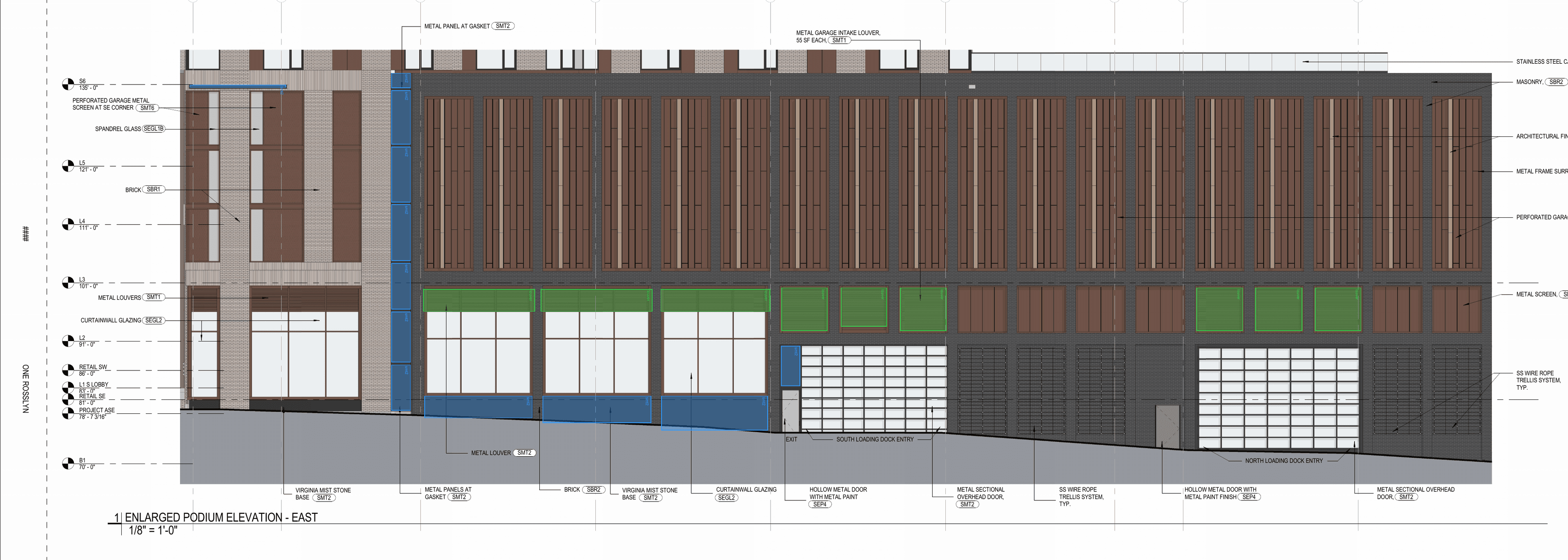

Annotated Output

Detected stone regions, ready for review

Annotated stone takeoff output showing detected regions

Every region is detected and grouped automatically, ready for estimator review.

Based on real construction drawings

All quantities mapped back to source plans

Fully reviewable and auditable outputs

Built for estimator workflows

Takeoffs only matter if they are fast to produce and easy to verify. Syntraix is built to move from detection to estimator-ready output without losing trust in the result.

Identify scope instantly
Syntraix highlights relevant materials across drawings so your team spends less time searching and more time estimating.
Verify every quantity
Each measurement is tied directly to the source drawing so estimators can quickly confirm accuracy.
Go straight to estimating
Outputs are structured and organized so they can be used immediately in pricing and bid workflows.

Estimator-ready output

Clean, structured quantities generated from the drawing and ready for pricing.

Stone Takeoff Summary

All values are linked back to source locations for verification.

smt2

12 regions

438.41 SF

7,124 lb

page 1

louver

9 regions

550.22 SF

8,941 lb

page 1

Total area

988.6 SF

Total weight

16,065 lb

Equivalent tons

8.03 tons

Ready to move faster?

Give your estimating team a faster way to read bid documents, generate quantities, and build estimates from the source files.
